Longitudinal CNC Lathe Copying Machine For Marble Cutting

Name: Longitudinal CNC Lathe Copying Machine For Marble Cutting
Brand: YOUKE
Price: 1 USD

Brand Name : YOUKE

Model Number : YKQF-600Z

Place of Origin : ANHUI

Model : YKQF-600Z

Blade diameter(mm) : φ400-φ600

Main motor power(kw) : 22

Cutting height(mm) : 500/400

Max. cutting(LxWxH)(mm) : 3500×900×550/2

Max. cutting thickness(mm) : 170

Dimensions(LxWxH)(mm) : 6500×4100×3500

Water consumption(m³/h) : 4

Approximate Weight(kg) : 5500

MOQ : 1

Price : Negotiable

Packaging Details : width 2200 x length 5200 x height 2350mm

Delivery Time : 15 work days

Payment Terms : L/C,D/A

Contact Now

Introduction

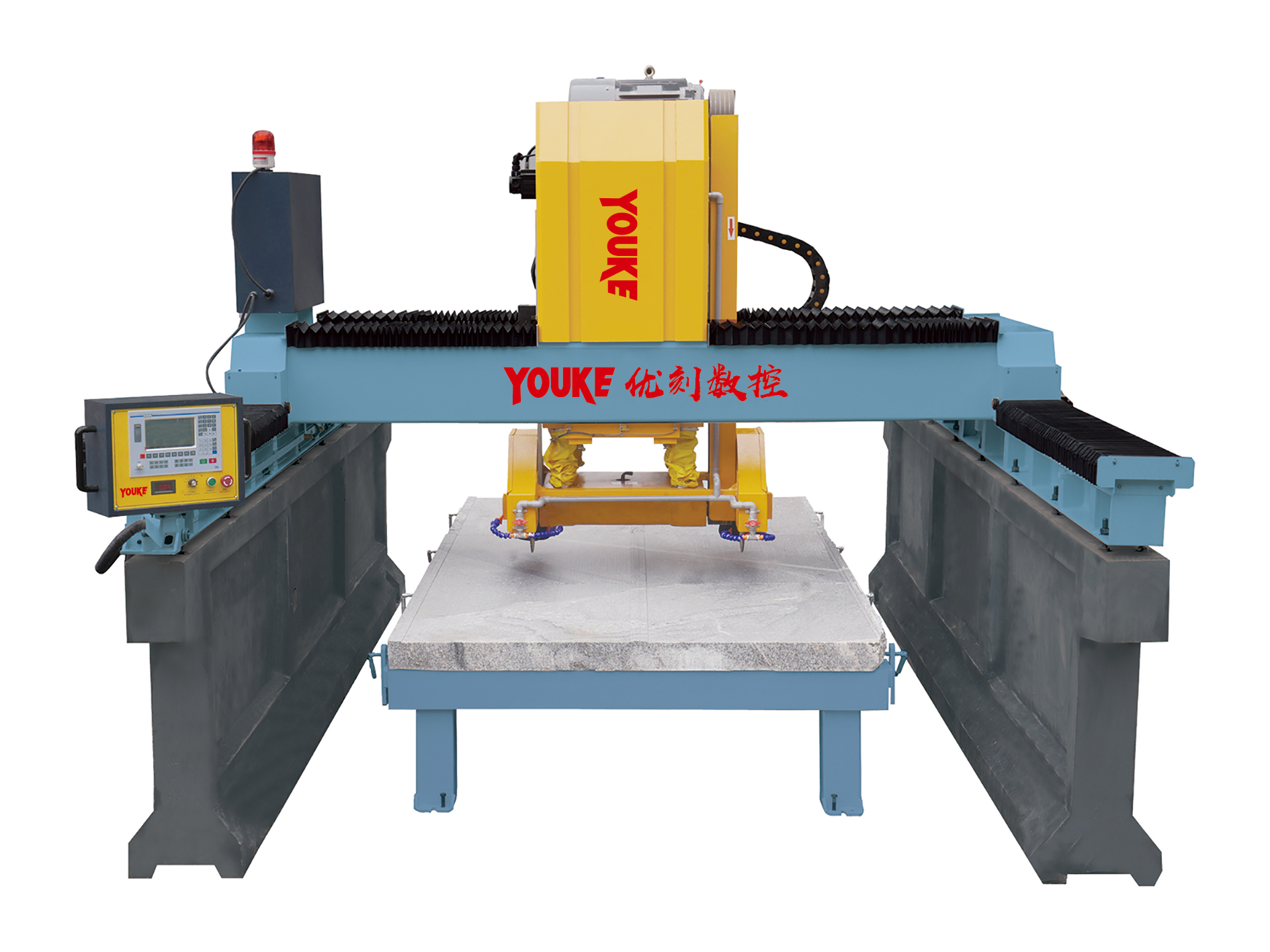

The equipment uses a bridge structure and usually consists of two main beams placed in parallel, which span the entire work area to form a stable machining platform. The double beam structure provides higher rigidity and stability and is suitable for the processing of heavy workpieces.

Functional Characteristic

This machine adopts double beam structure of gantry type. Full servo control, using high-precision linear track and oil-immersed and dust-proof structure to ensure equipment accuracy and service life, the machine can realize CNC programming and CAD import, three-dimensional using NC path to meet all kinds of high-precision stone (cement products) shaped workpiece processing. Adjusting the parameters can realize the operation of one person and multiple machines.

Various parameters

Product name	Longitudinal CNC copying machine YK-QF-600Z
Model	YKQF-600Z
Blade diameter(mm)	φ400-φ600
Main motor power(kw)	22
Cutting height(mm)	500/400
Max. cutting(LxWxH)(mm)	3500×900×550/2
Max. cutting thickness(mm)	170
Dimensions(LxWxH)(mm)	6500×4100×3500
Water consumption(m³/h)	4
Approximate Weight(kg)	5500
